TYPE: WR
MAXIMUM LOAD CAPACITY: 160 kg
POSSIBILITY OF USE IN FIRE DOOR: yes
OTHER:
ROLLER HINGES WR SELECTION
Type selection should be made according to table of proper roller hinge system.
COVER
The hinge is also available with cover made of 304 stainless steel, that works best with anodized wings. External dimension of the cover: Ø22mm.
WR ROLLER HINGE CLASSIFICATION
EN 1935:2002 + EN 1935:2002/AC:2003
for use in fire door and emergency exit doors
|
|
|
|
|
|
|
|
|
| 4 | 7 | 7 | 1 | 1 | 4 | 1 | 14 |
.jpg) |
service classes (1-4) |
.jpg) |
durability (3,4,7) |
.jpg) |
weight of test door (0-7) |
.jpg) |
fire resistance (0,1) |
.jpg) |
security (1) |
.jpg) |
corrosion resistance (0-4) |
.jpg) |
intrusion protection (0,1) |
.jpg) |
hinge class (1-14) |
CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.
WR hinge dimensions:

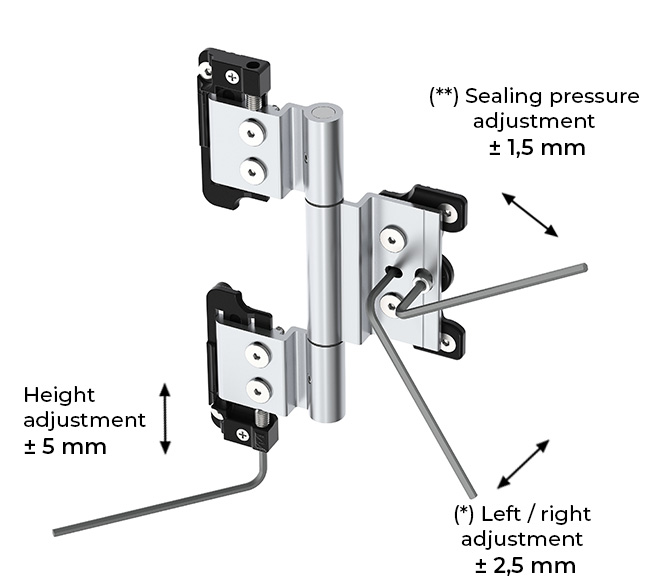

WR hinge adjustment:
(*) - for aluminium systems with a gap of least 6mm, for systems with the gap 5mm, adjustment range is -1,5mm to +2,5mm (because of the wing's thickness 3,5mm).
(**) - real range can differ a bit because of the gap value at the seal, depanding on aluminium system
