TYPE: WTB - WT glass sheet hinge with rounded, thick mask
MAXIMUM LOAD CAPACITY: 90 kg
POSSIBILITY OF USE IN FIRE DOOR: no
OTHER:
PRODUCT CODE: WTA 8010441X
WT HINGE CLASSIFICATION EN 1935:2002 + EN 1935:2002/AC:2003
for use in emergency exit doors
|
|
|
|
|
|
|
|
|
| 4 | 7 | 5 | 0 | 1 | 4 | 0 | 12 |
.jpg) |
service classes (1-4) |
.jpg) |
durability (3,4,7) |
.jpg) |
weight of test door (0-7) |
.jpg) |
fire resistance (0,1) |
.jpg) |
security (1) |
.jpg) |
corrosion resistance (0-4) |
.jpg) |
intrusion protection (0,1) |
.jpg) |
hinge class (1-14) |
CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.
WTB hinge dimensions:

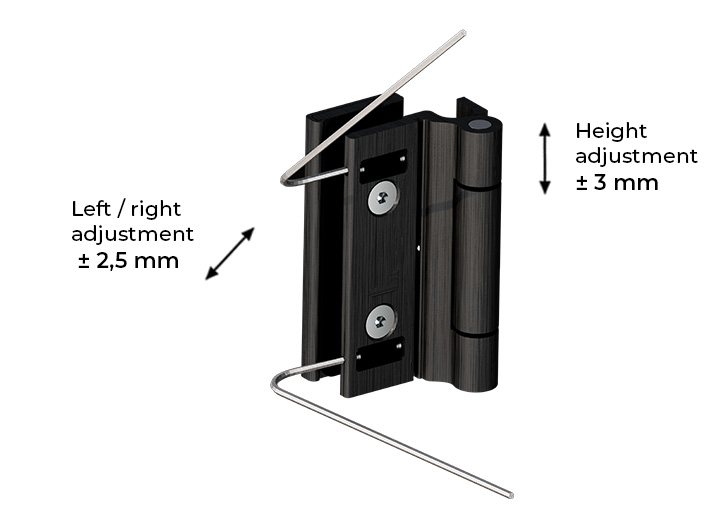

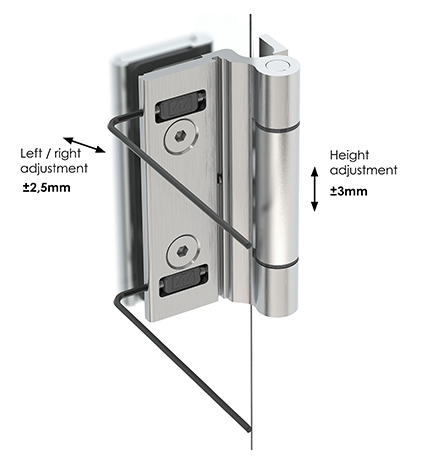

Hinge adjustment:

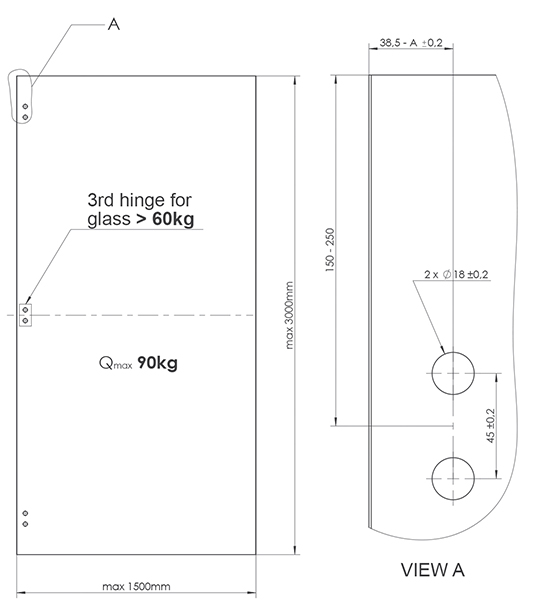

Tooling in glass sheet:
 |
| GR - glass thickness: 8 - 12mm |
 |
| Tooling in glass sheet |
| GAP A [mm] | DIMENSION IN GLASS [mm] |
| 4 | 34,5 ± 0,2 |
| 4,5 | 34,0 ± 0,2 |
| 5 | 33,5 ± 0,2 |
| 5,5 | 33,0 ± 0,2 |
| 6 | 32,5 ± 0,2 |
| 6,5 | 32,0 ± 0,2 |
| 7 | 31,5 ± 0,2 |
| 7,5 | 31,0 ± 0,2 |
| 8 | 30,5 ± 0,2 |
Tooling in aluminium profile:
 |
 |
| Tooling in aluminium profile (screw dowels fixing set) |
Tooling in aluminium profile (rivel nuts fixing set) |
