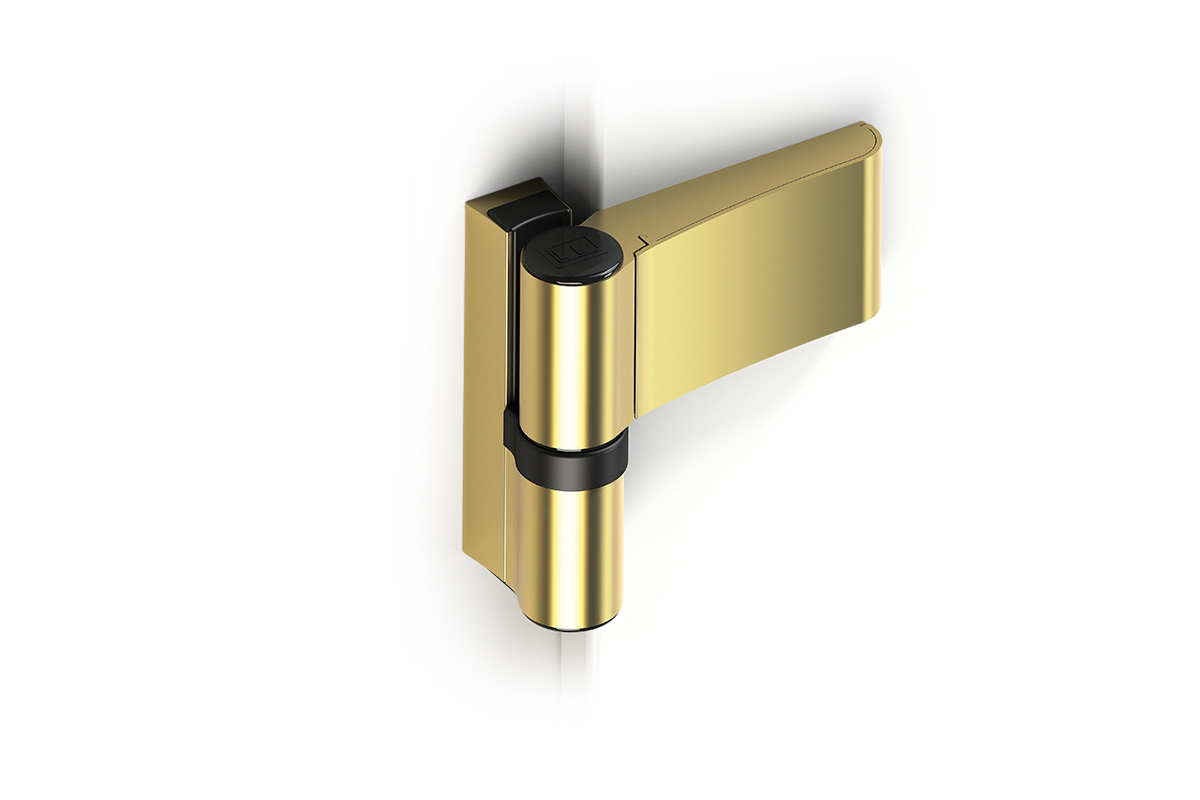

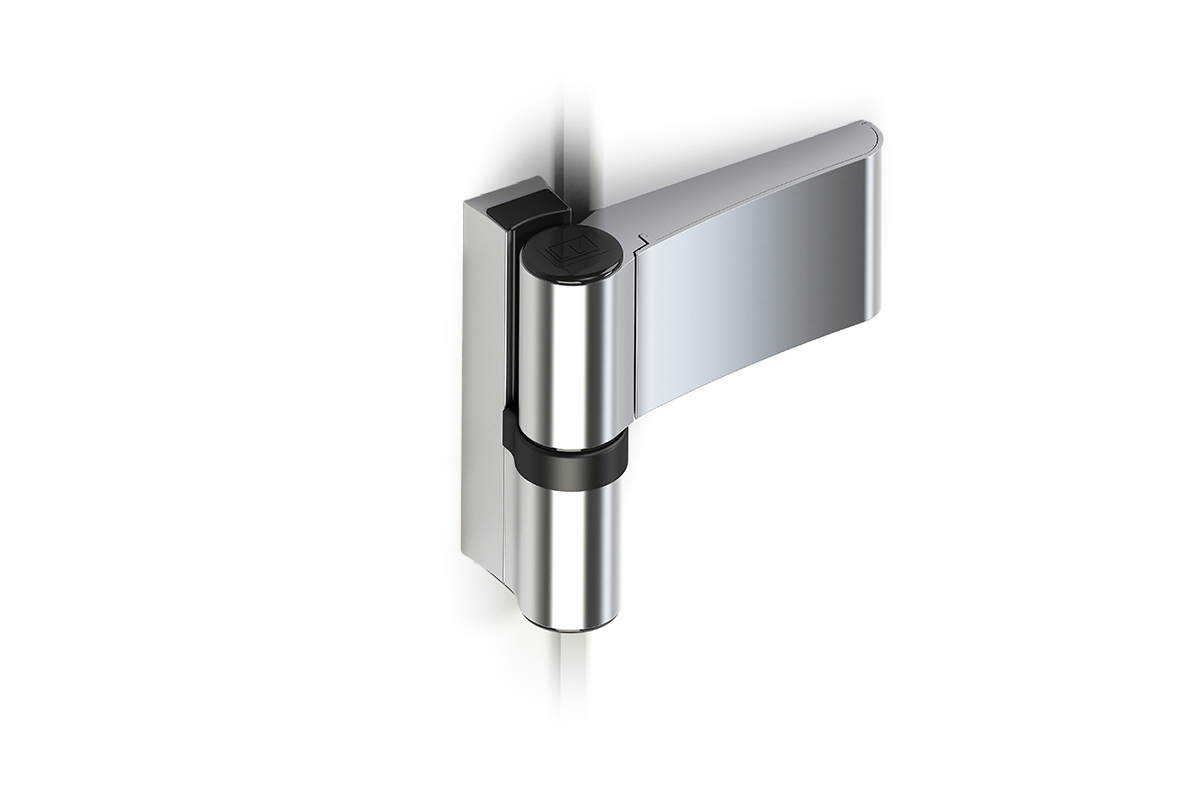

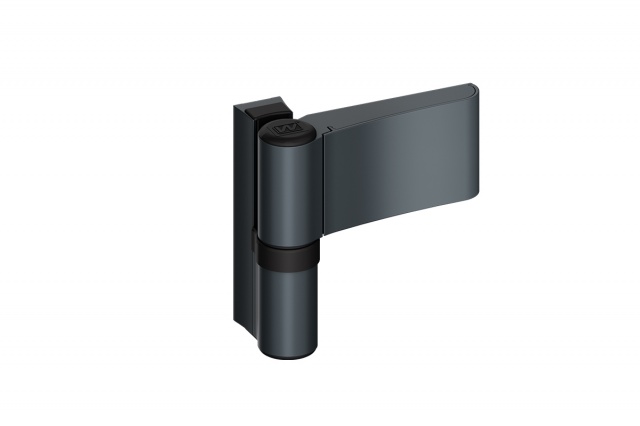

TYPE: AXL 2 wing hinge for PVC door
MAXIMUM LOAD CAPACITY: 160 kg
POSSIBILITY OF USE IN FIRE DOOR: no
OTHER:
independent and smooth adjustment in 3 directions
easy and fast assembly
certificated product
PRODUCT CODE:
AXL 1710456X - aluminium, upstand 17mm
AXL 1910456X - aluminium, upstand 19mm
AXL 2210456X - aluminium, upstand 22mm
AXL 2410456X - aluminium, upstand 24mm
AXL HINGE CLASSIFICATION EN 1935:2002 + EN 1935:2002/AC:2003
for use in emergency exit doors
|
|
|
|
|
|
|
|
|
| 4 | 7 | 7 | 0 | 1 | 4 | 1 | 14 |
.jpg) |
service classes (1-4) |
.jpg) |
durability (3,4,7) |
.jpg) |
weight of test door (0-7) |
.jpg) |
fire resistance (0,1) |
.jpg) |
security (1) |
.jpg) |
corrosion resistance (0-4) |
.jpg) |
intrusion protection (0,1) |
.jpg) |
hinge class (1-14) |
Assembly and adjustment:
CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.

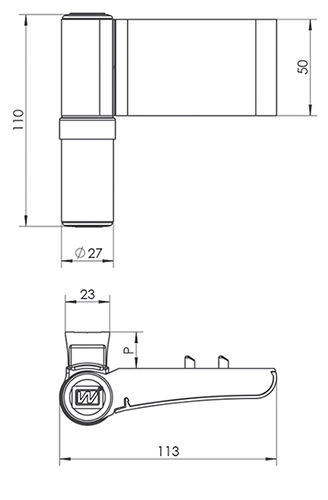

Dimensions:
 |
| P - upstand in "0" posiotion: |
| AXL 17.. - 17mm |
| AXL 19.. - 19mm |
| AXL 22.. - 22mm |
| AXL 24.. - 24mm |
Drilling instruction:
 |
drilling Ø5 through the steel hardener |
 |
drilling Ø5, depth of drilling - 10mm (usually just through the plastic to hardener) |
 |
dimension of drilling distance, settled individually for each system so that the drilling runs completely in the hardener and not behing it. It is also use the settle the templates for drilling the holes in the profile according to suitbale dustances. |

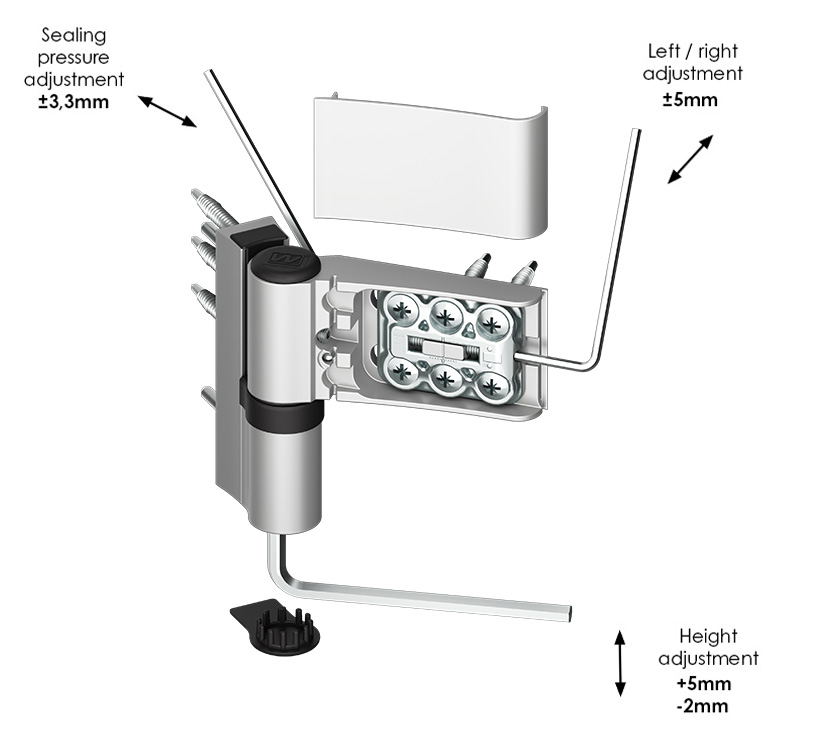

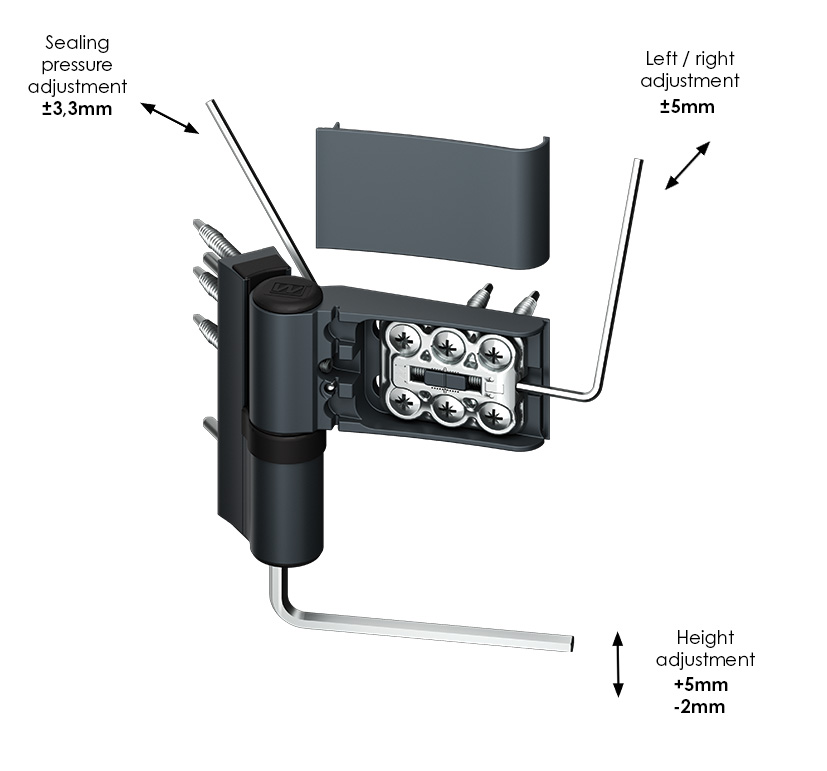

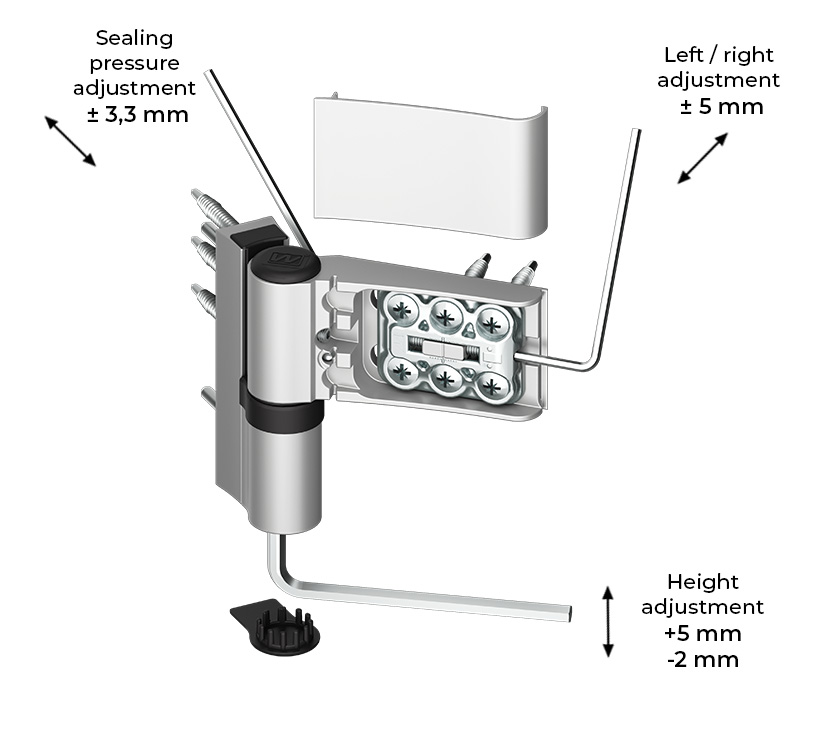

Adjustment:
