TYPE: EXM 2-wings - PCV
MAXIMUM LOAD CAPACITY: 120 kg
POSSIBILITY OF USE IN FIRE DOOR: no
OTHER:
independent and smooth adjustment in 3 directions
easy and fast assembly
certificated product
EXM HINGE CLASSIFICATION EN 1935:2002 + EN 1935:2002/AC:2003
for use in emergency exit doors
|
|
|
|
|
|
|
|
|
| 4 | 7 | 6 | 0 | 1 | 4 | 1 | 13 |
.jpg) |
service classes (1-4) |
.jpg) |
durability (3,4,7) |
.jpg) |
weight of test door (0-7) |
.jpg) |
fire resistance (0,1) |
.jpg) |
security (1) |
.jpg) |
corrosion resistance (0-4) |
.jpg) |
intrusion protection (0,1) |
.jpg) |
hinge class (1-14) |
CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.
Dimensions:
 |
 |
| P - upstand in "0" posiotion: |
The upstand of 22mm is achieved by the distance plate. |
| EXM 17.. - 17mm (14 - 20mm) | |
| EXM 19.. - 19mm (16 - 22mm) | |
| EXM 21.. - 21mm (18 - 24mm) |
Drilling instruction:
 |
drilling Ø5 through the steel hardener |
 |
drilling Ø5, depth of drilling - 10mm (usually just through the plastic to hardener) |
 |
dimension of drilling distance, settled individually for each system so that the drilling runs completely in the hardener and not behing it. It is also use the settle the templates for drilling the holes in the profile according to suitbale dustances. |

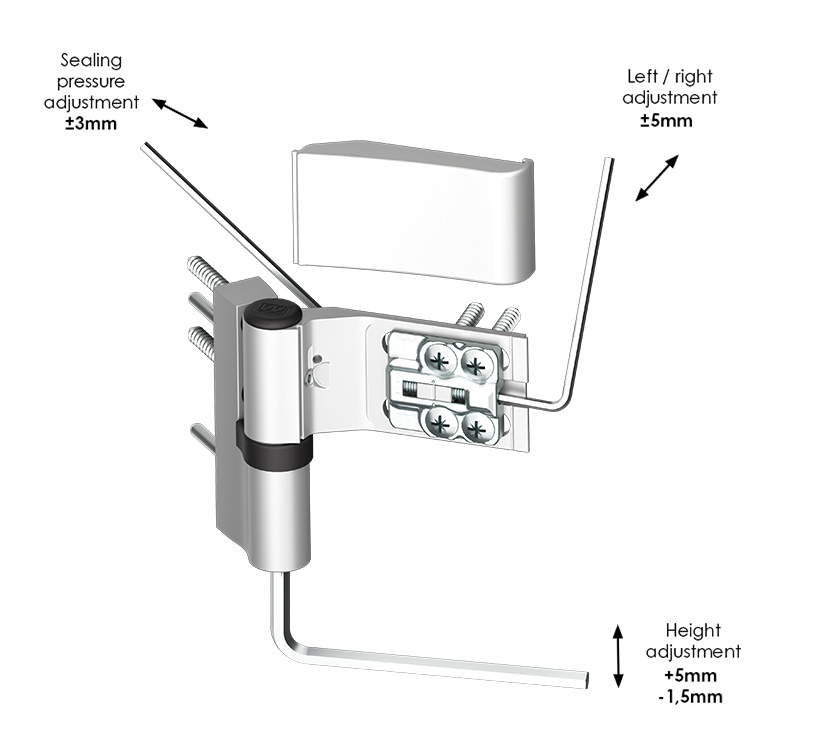

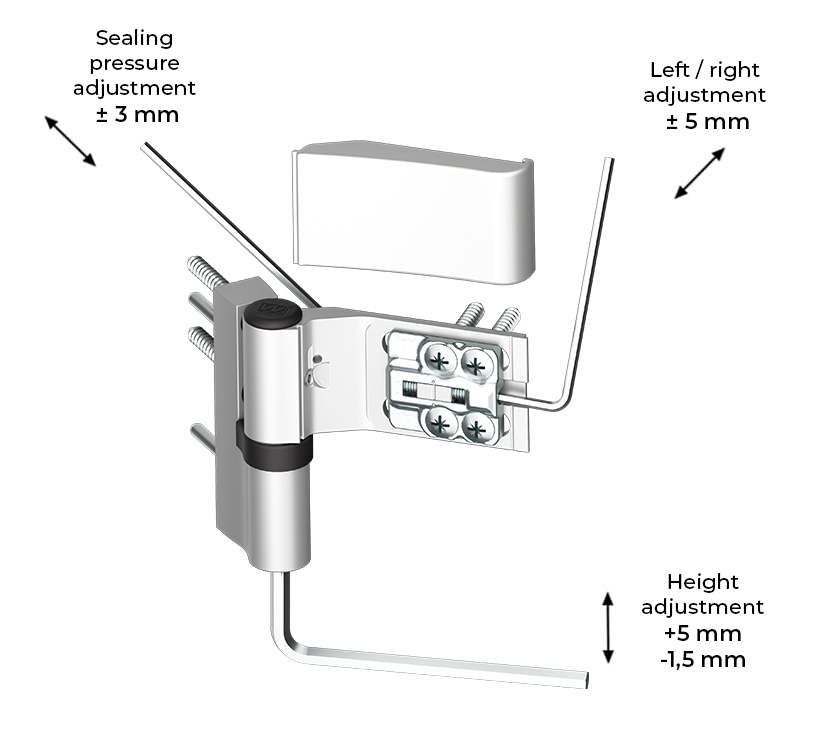

Adjustment:
