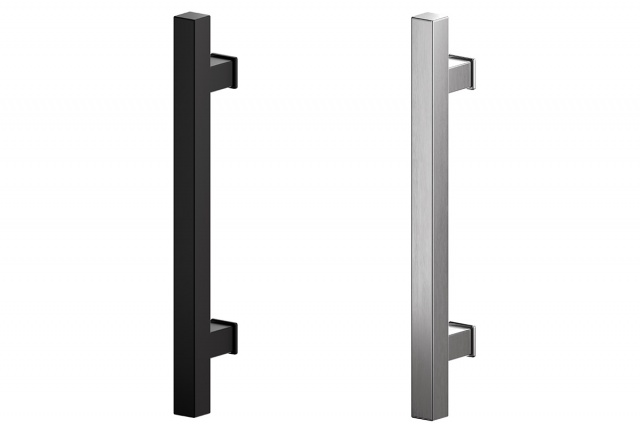

The characteristic feature of this series of handles is that the legs are flush with the handle pipe because both elements are made of a profile with the same dimensions.

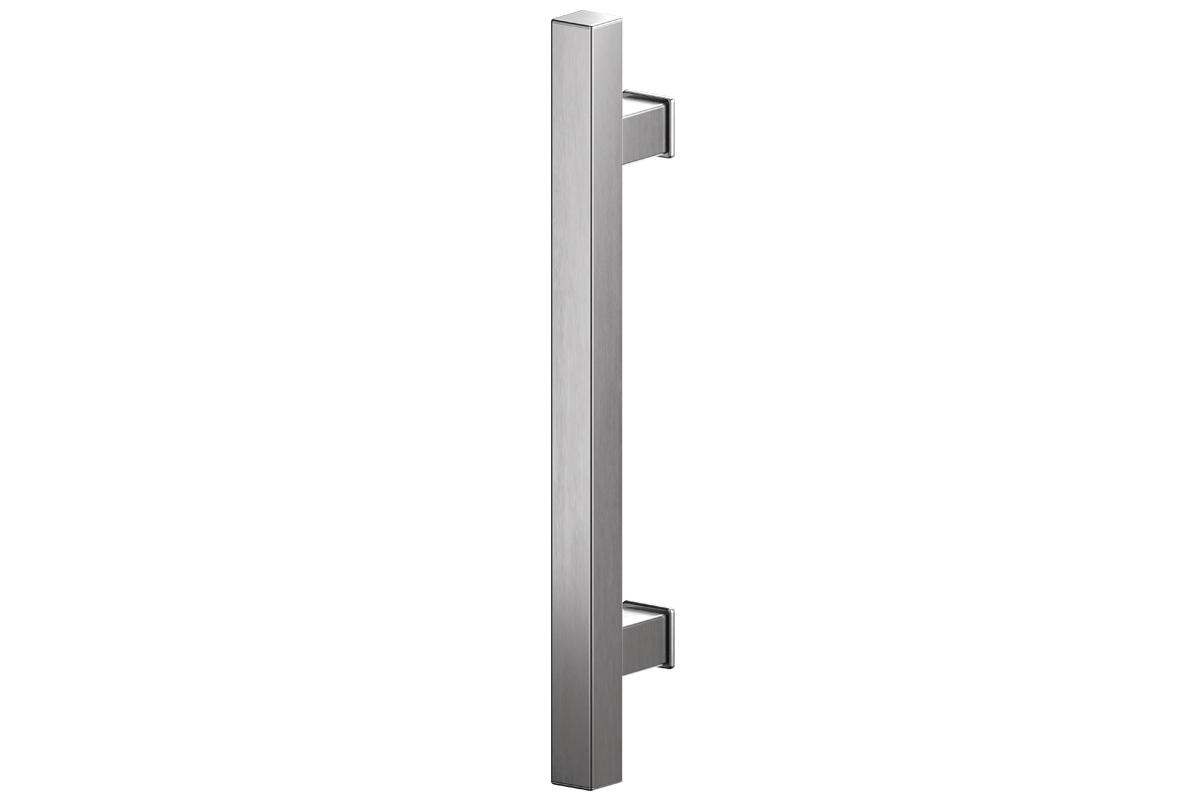

The handle is made of 304 or 316 stainless steel. The standard handle is brushed, but it can also be sandblasted (max 1000mm) or polished. Stainless steel handles are made of a tube with a diameter of 40x40.
STAINLESS STEEL type 316 is more resistant to corrosion, it is recommended for use in difficult weather conditions, particularly exposed to chemicals and water, especially salt and chlorinated water.
STAINLESS STEEL 304 is an economical solution mainly used in neutral locations.

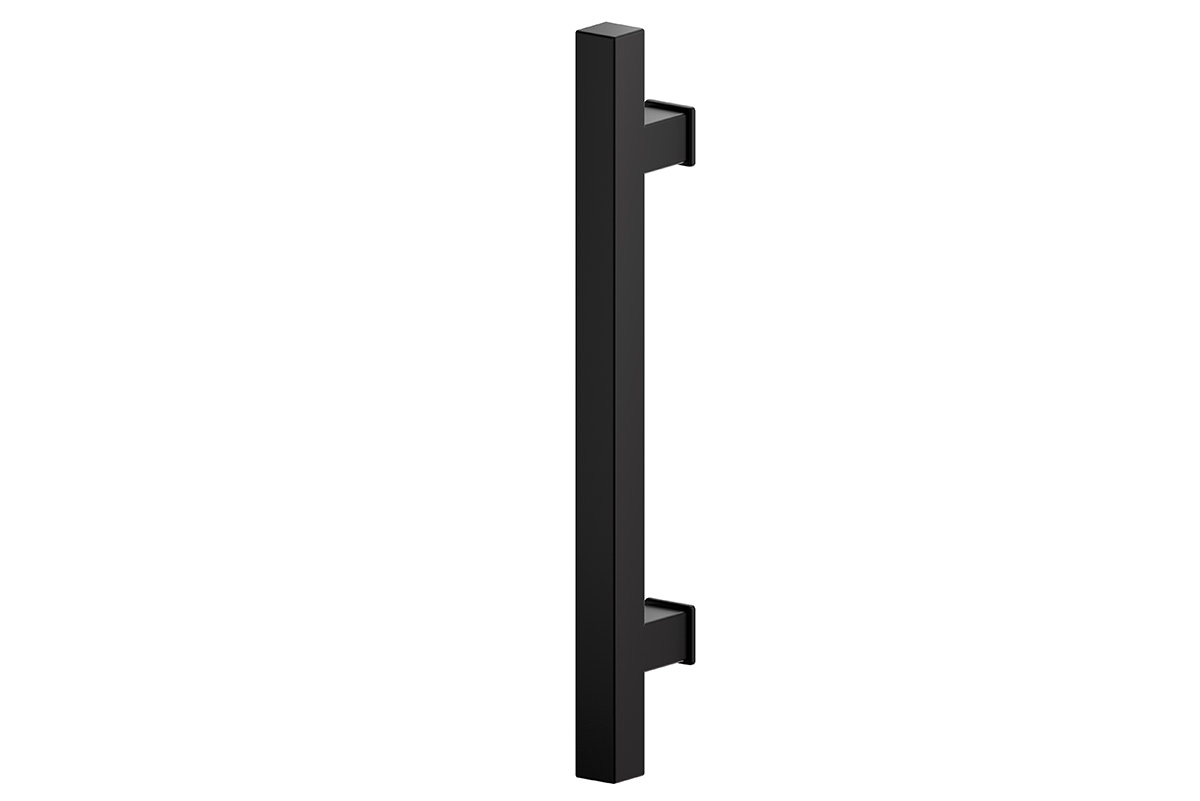

The handle is made of aluminium with possible tube dimension of 40x40.
Aluminium handle can be varnished (in any colours from RAL pallet) or can get anodised finish.
Access Control Systems and backlight in S10 and SA10 handles:
✓ - possible assembly
○ - impossible assembly
The table of selection stainless steel and aluminium handles can be found in „TECHNICAL SPECIFICATION” lap.
CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.
 |
 |

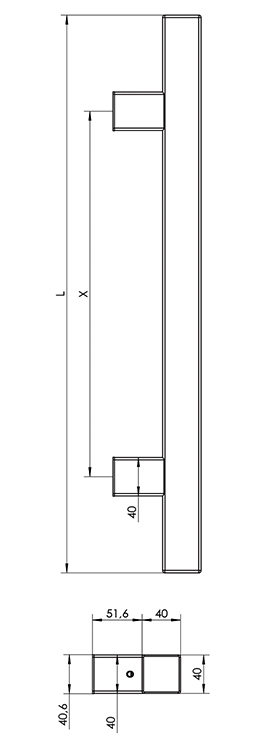

| DIMENSIONS S10 | ||||
| LENGTH L | HOLE SPACING X | 40x40 | ||
| 304 | 316 | |||
| 300 | 200 | ● | ● | |
| 400 | 200 | ● | ● | |
| 500 | 300 | ● | ● | |
| 580 | 380 | ● | ● | |
| 600 | 400 | ✓ | ● | |
| 800 | 600 | ✓ | ● | |
| 1000 | 800 | ✓ | ● | |
| 1200 | 1000 | ✓ | ✓ | |
| 1400 | 1200 | ✓ | ● | |
| 1500 | 1300 | ✓ | ● | |
| 1600 | 1300 | ● | ● | |
| 1600 | 1400 | ✓ | ✓ | |
| 1800 | 1300 | ● | ● | |
| 1800 | 1600 | ✓ | ✓ | |
| 2000 | 1800 | ✓ | ● | |
| 2200 | 2000 | ✓ | ● | |
| 150-1200 | ● | ● | ||
| 1201-1600 | 40x40 max 1400 | ● | ● | |
| 1601-2000 | 40x40 max 1800 | ● | ● | |
| 2001-2600 | max 2300 | ● | ● | |
| DIMENSIONS SA10 | |||
| LENGTH L | HOLE SPACING X | 40x40 | |
| 300 | 200 | ● | |
| 400 | 200 | ● | |
| 500 | 300 | ● | |
| 580 | 380 | ● | |
| 600 | 400 | ● | |
| 800 | 600 | ✓ | |
| 1000 | 800 | ✓ | |
| 1200 | 1000 | ✓ | |
| 1400 | 1200 | ✓ | |
| 1600 | 1200 | ✓ | |
| 1800 | 1300 | ✓ | |
| 2000 | 1600 | ✓ | |
| 150-1600 | max 1200 | ● | |
| 1601-2300 | max 1600 | ● | |
| 2301-2600 | 3 fixing points | ● | |
✓ - standard product
● - product made for individual order
○ - product unavailable
