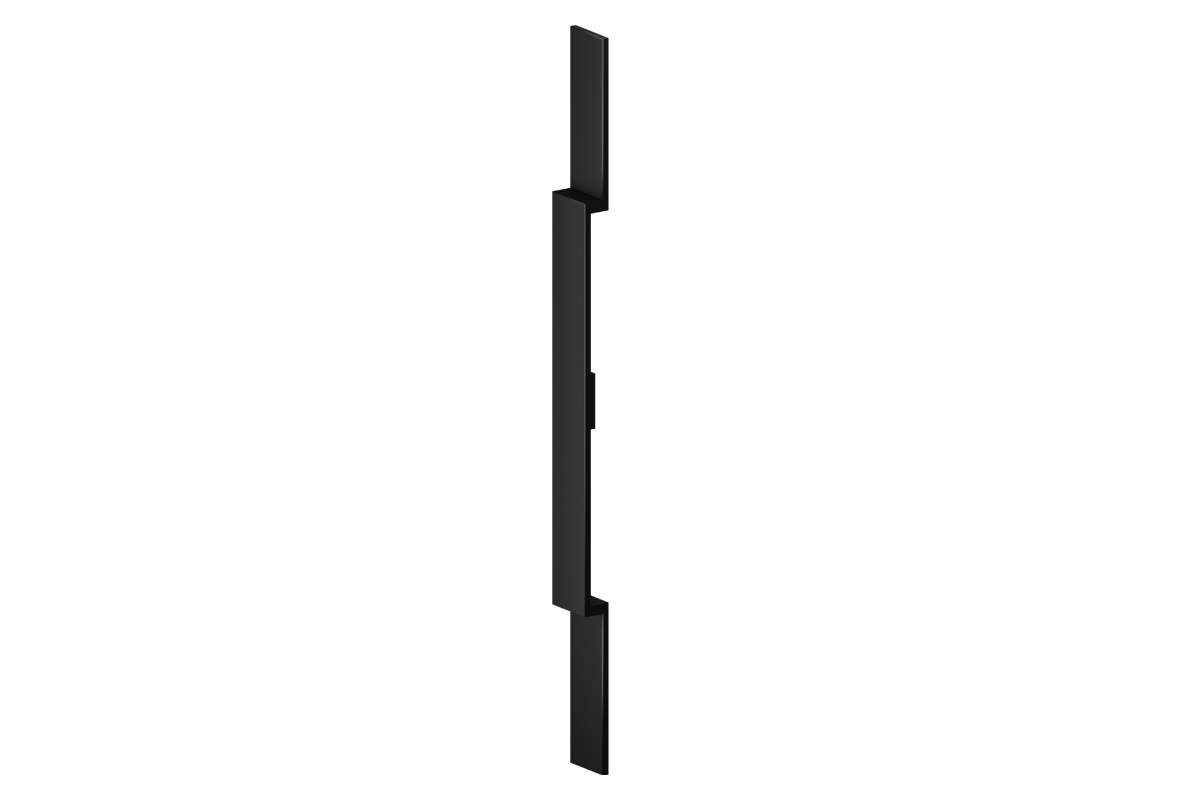

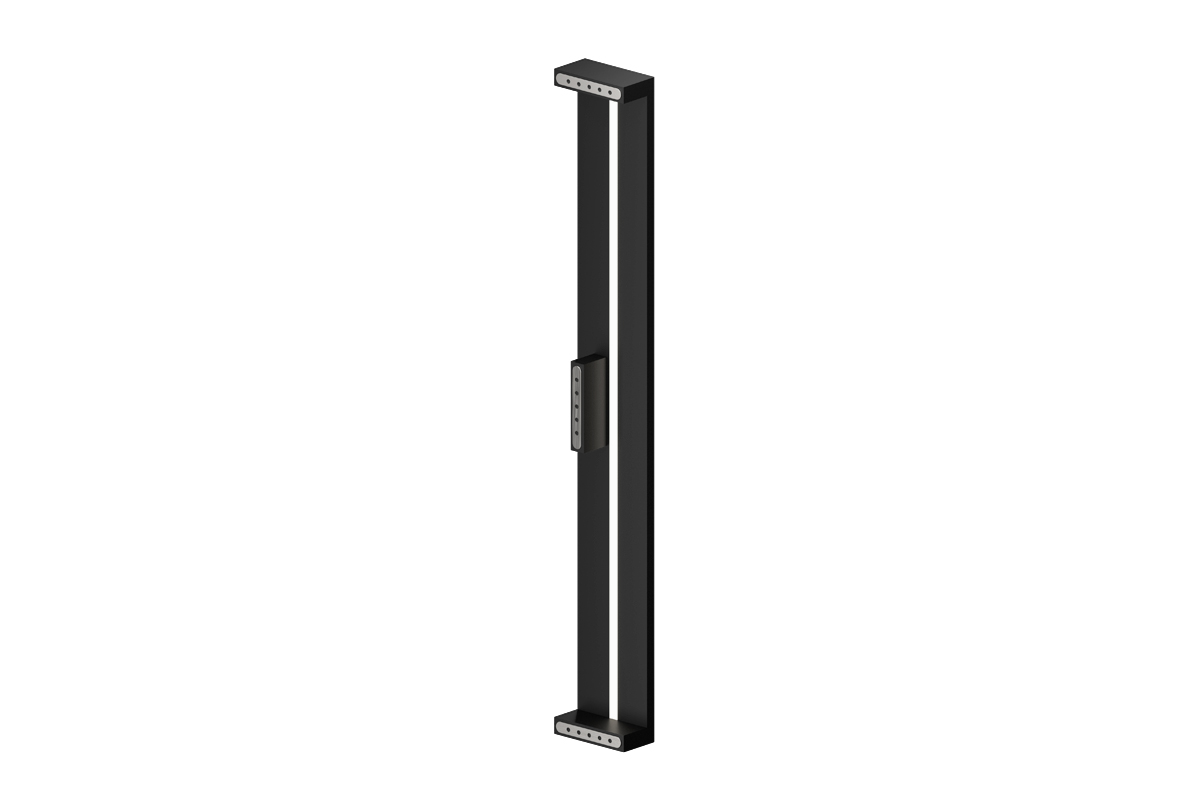

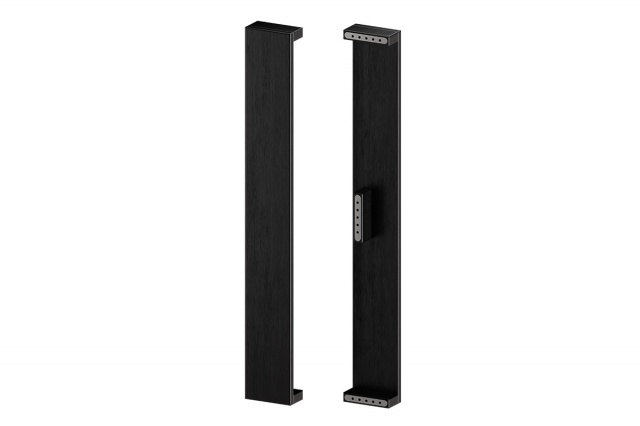

PS21 door handle made of 80x10 aluminum flat bar
The handrail is intended for panel doors due to the fastenings.
The handle has 3 fixing points as standard, while atypical with a length in the range of 2001-2500 already 4 fixing points.
Center legs are moved towards the edge.
An interesting option is to extend the handle with the PSN01 extension with a length of 50 - 1200 mm. The extensions are also made of a flat bar 80x12, they can be mounted at the bottom, at the top, or on both sides at the same time.
The handle can be effectively illuminated with a built-in LED strip that runs along the entire length of the handle.
CAUTION!
Presented colours may differ from actual colours, depending on e.g. personal computer settings, etc. and are only for illustrative purposes.

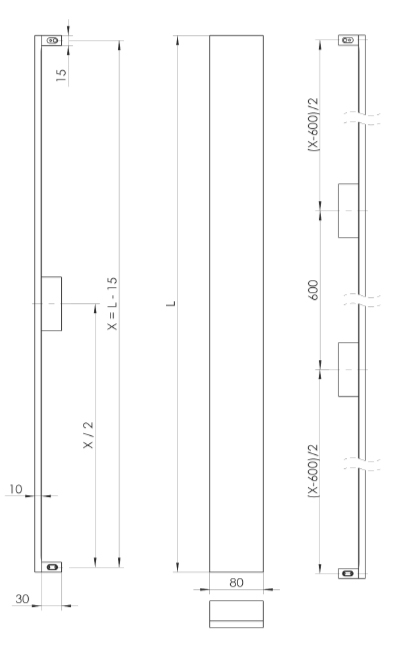

DIMENSIONS HANDLE PS21 for L<=2000 and L>2000:
| DIMENSIONS OF HANDLE | 80x10 | |
| LENGTH L | ALUMINIUM | |
| 800 | ✓ | |
| 1200 | ✓ | |
| 1600 | ✓ | |
| 2000 | ✓ | |
| 500 - 800 | ● | |
| 801 - 1200 | ● | |
| 1201 - 1600 | ● | |
| 1601 - 2000 | ● | |
|
2001 - 2500 (4 mounting points) |
● | |
DIMENSIONS MAKEWEIGHT:
| DIMENSIONS MAKEWEIGHT | 80x12 | |
| LENGTH L | ALUMINIUM | |
| 50 - 400 | ● | |
| 401 - 600 | ● | |
| 601 - 800 | ● | |
| 801 - 1200 | ● | |
✓ - standard product
● - product made for individual order
○ - product unavailable
